MIB3012M-W Series

MIB3012M-W Series

Features


MIB3012M-W
  • Shielded,small foot print and low profile power inductors. 3.0mmv3.0mm(Typ)Xh1.2mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

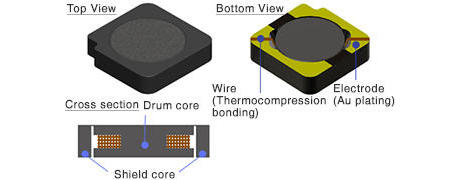

Structure


MIB3012M-W

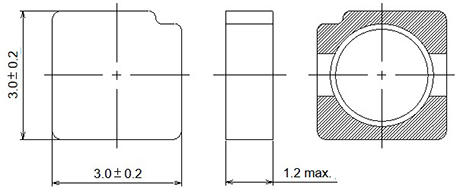

Dimensions

【MIB3012M-W Series】

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Rated current
Idc2 [A] *4
MIB3012M-R50W 0.5±30% 0.037 3.23 2.87
MIB3012M-1R0W 1.0±30% 0.042 2.39 2.43
MIB3012M-2R2W 2.2±20% 0.081 1.7 1.81
MIB3012M-3R3W 3.3±20% 0.098 1.44 1.6
MIB3012M-4R7W 4.7±20% 0.14 1.2 1.35
MIB3012M-6R8W 6.8±20% 0.21 0.98 1.06
MIB3012M-100W 10.0±20% 0.29 0.83 0.89
MIB3012M-150W 15.0±20% 0.42 0.68 0.72
MIB3012M-220W 22.0±20% 0.68 0.55 0.57

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

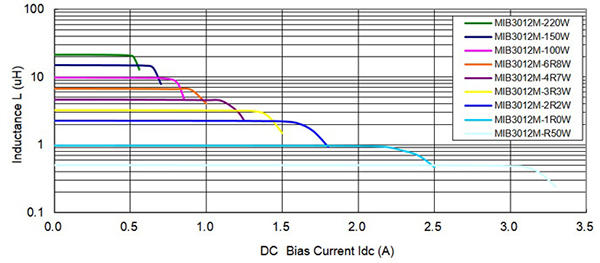

DC bias current characteristics
