PMZ Series

PMZ Series

Features


Block Type EMI Filters for DC Power Line PMZ Series
The PMZ series is the noise countermeasure part of the SMD type which core is the ferrite raw materials. This has the excellent characteristics about the noise depression-effect in DC Power line of electronic devices.
  • Monolithic inorganic material construction for high reliability.

  • Compact and achieve large allowable current, and can be used for DC power supply line.

  • Tin-plated termination ensures excellent solder heat resistance and solderability.

  • RoHS Compliant.

Applications


Notebook PC, digital appliance, DC power supply line of OA machinery. As for robot, FA machinery, DC power supply line of industrial use electronics.

Equivalent circuit

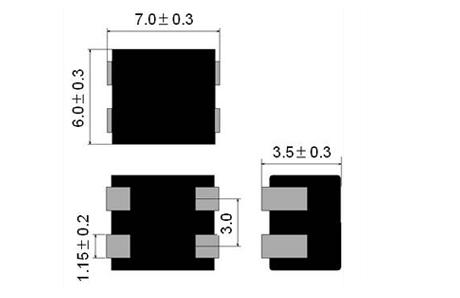

Dimensions


  • Dimensions

Recommended P.C. board pattern
