Aluminum Nitride (AlN) Filler
Aluminum nitride is a material characterized by high thermal conductivity and insulation properties, and is used as a heat-dissipating filler mixed into resins.
With the increasing demand for heat dissipation performance due to the miniaturization and high-density integration of electronic devices, there is active consideration of switching from currently used silica and alumina powders to aluminum nitride powder.
MARUWA offers a lineup of aluminum nitride fillers with different particle sizes for high thermal conductivity Thermal Interface Material (TIM) applications.
Characteristics / Features
-
High thermal conductivity
-
Sharp particle size distribution
-
Unique fine spherical particles not available from other companies
Applications
-
Thermal Interface Material(TIM)
Adhesives, gels, greases, pads, etc.
Lineup
We offer three types in the ANF-A series and four types in the ANF-S series.
| Item | Unit | ANF-A-01-F | ANF-A-02-F | ANF-A-04-F | ANF-S-30 | ANF-S-50 | ANF-S-80 | ANF-S-100 |
| D50 | μm | 1.4 | 2.3 | 4.0 | 35 | 55 | 80 | 110 |
| D90 | μm | 2.5 | 3.3 | 5.5 | 65 | 95 | 120 | 160 |
| BET Specific Surface Area | m2/g | 2.9 | 1.2 | 0.7 | 0.05 | 0.04 | 0.02 | 0.01 |
| Bulk Density | g/cm3 | 0.5 | 0.8 | 1.0 | 1.5 | 1.7 | 1.8 | 1.9 |
*The values in the table are representative values and do not guarantee quality.

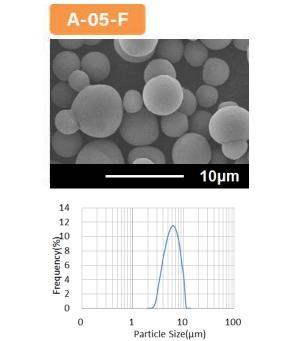

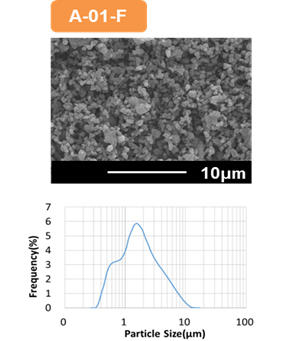

ANF-A Series

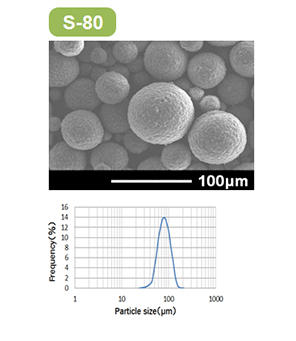

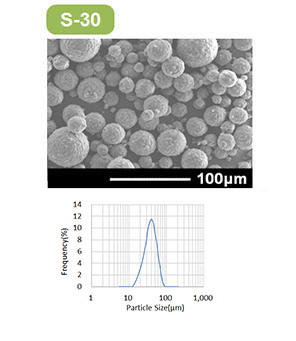

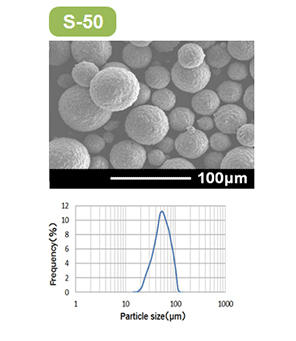

ANF-S Series
Surface Treatment
Aluminum nitride powder undergoes a hydrolysis reaction, as shown in equation (1), which results in a reduction in thermal conductivity.
AlN + 3H2O → Al(OH)3 + NH3 …… (1)
MARUWA's aluminum nitride fillers can be treated with water resistance for all grades.
Please contact us for more details.
