SL series are wire-bondable multilayer ceramic capacitors, these are thinner than Y series and especially suitable for high density IC packages. It has low impedance and also excellent electrical characterization at high frequency ranges. Available for custom-made requirements.

Applications


IC, optical devices for telecommunication, measurement and medical equipment.

Avalable Range


Temperature Characterristic EIA Symbol Capacitance Change Temperature Change Capacitance Tolerance
X7R X7R ±15% -55~+125°C M(±20%)
X7S X7S ±22% -55~+125°C M(±20%)

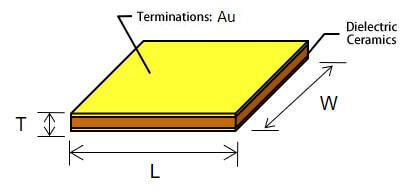

Structure


Dimensions


  • Type L W T
    SL02 0.25±0.13 0.25±0.13 【10V Type】 0.12±0.025mm
    SL03 0.38±0.13 0.38±0.13
    SL05 0.50±0.13 0.50±0.13 【25V Type】 0.15±0.025mm
    SL06 0.63±0.13 0.63±0.13
    SL07 0.76±0.13 0.76±0.13 【50V Type】 0.25±0.025mm
    SL10 1.00±0.13 1.00±0.13

Available Range


Type (Size:mm) SL02(□0.25mm) SL03(□0.38mm) SL05(□0.50mm) SL06(□0.63mm) SL07(□0.76mm) SL10(□1.00mm)
Related Voltage(Vdc)
10(1A) 25(1E) 50(1H) 10(1A) 25(1E) 50(1H) 10(1A) 25(1E) 50(1H) 10(1A) 25(1E) 50(1H) 10(1A) 25(1E) 50(1H) 10(1A) 25(1E) 50(1H)
Capacitance(㎋) 101 100.00 0.15 0.25
151 150.00 0.15
221 220.00 0.12 0.15 0.25 0.25
331 330 0.15
471 470.0 0.12 0.15 0.25 0.25
681 681.0 0.15 0.25
102 1.000 0.12 0.15 0.15 0.25 0.25
152 1.500 0.12 0.15 0.25
222 2.200 0.12
332 3.300 0.12

= Thickness(㎜)
