MIB3010M-W Series

MIB3010M-W Series

Features


MIB3010M-W
  • Shielded,small foot print and low profile power inductors. 3.0mmX3.0mm(Typ)Xh1.0mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

Structure


MIB3010M-W

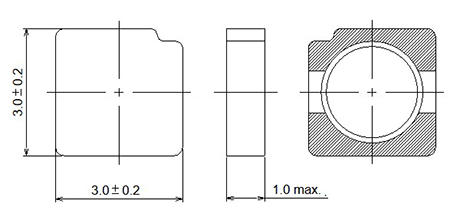

Dimensions

【MIB3010M-W Series】

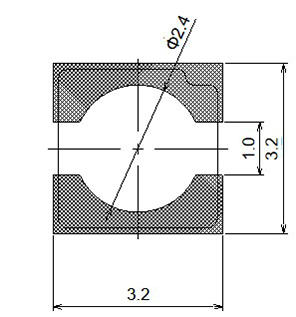

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Operating temperature range
Ta[°C] *4
MIB3010M-1R0W 1.0±30% 0.051 2.07 / 2.24 -40~+125
MIB3010M-2R2W 2.2±20% 0.089 1.36 / 1.63 -40~+125
MIB3010M-3R3W 3.3±20% 0.13 1.15 / 1.30 -40~+125
MIB3010M-4R7W 4.7±20% 0.19 0.93 / 1.05 -40~+125
MIB3010M-6R8W 6.8±20% 0.23 0.85 / 0.98 -40~+125
MIB3010M-100W 10.0±20% 0.36 0.65 / 0.79 -40~+125
MIB3010M-150W 15.0±20% 0.62 0.53 / 0.59 -40~+125
MIB3010M-220W 22.0±20% 0.91 0.42 / 0.49 -40~+125

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

DC bias current characteristics
