MIB2510M-W Series

MIB2510M-W Series

Features


MIB2510M-W
  • Shielded,small foot print and low profile power inductors. 2.5mmX2.5mm(Typ)Xh1.0mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

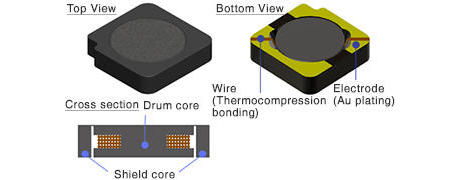

Structure


MIB2510M-W

Dimensions

【MIB2510M-W Series】

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Operating temperature range
Ta[°C] *4
MIB2510M-R47W 0.47±30% 0.041 2.58 / 2.43 -40~+125
MIB2510M-R68W 0.68±30% 0.05 2.14 / 2.18 -40~+125
MIB2510M-1R0W 1.0±30% 0.061 1.91 / 2.09 -40~+125
MIB2510M-2R2W 2.2±20% 0.1 1.28 / 1.64 -40~+125
MIB2510M-3R3W 3.3±20% 0.17 1.05 / 1.26 -40~+125
MIB2510M-4R7W 4.7±20% 0.21 0.91 / 1.03 -40~+125
MIB2510M-6R8W 6.8±20% 0.32 0.70 / 0.81 -40~+125
MIB2510M-100W 10.0±20% 0.53 0.57 / 0.61 -40~+125
MIB2510M-220W 22.0±20% 1.16 0.38 / 0.41 -40~+125

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

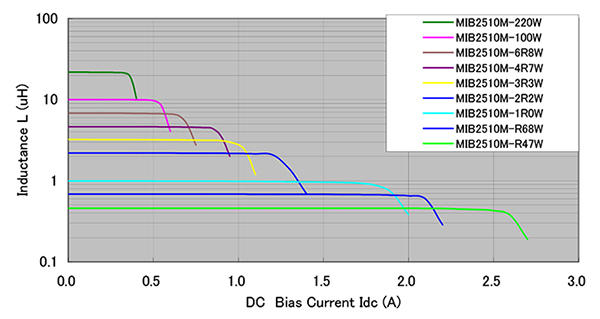

DC bias current characteristics
