MIB3008M-W Series

MIB3008M-W Series

Features


MIB3008M-W
  • Shielded,small foot print and low profile power inductors. 3.0mmX3.0mm(Typ)Xh0.8mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

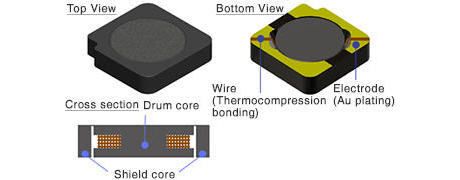

Structure


MIB3008M-W

Dimensions

【MIB3008M-W Series】

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Operating temperature range
Ta[°C] *4
MIB3008M-1R0W 1.0±30% 0.073 1.53 / 1.89 -40~+125
MIB3008M-2R2W 2.2±20% 0.14 1.11 / 1.32 -40~+125
MIB3008M-3R3W 3.3±20% 0.2 0.87 / 1.10 -40~+125
MIB3008M-4R7W 4.7±20% 0.3 0.72 / 0.88 -40~+125
MIB3008M-6R8W 6.8±20% 0.38 0.61 / 0.76 -40~+125
MIB3008M-100W 10.0±20% 0.6 0.52 / 0.60 -40~+125

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

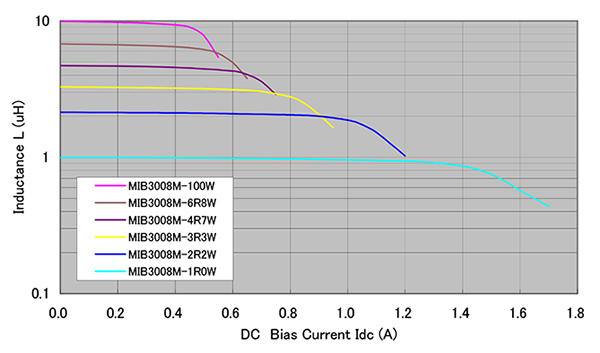

DC bias current characteristics
