MIB4008M-W Series

MIB4008M-W Series

Features


MIB4008M-W
  • Shielded,small foot print and low profile power inductors. 4.0mmX4.0mm(Typ.)Xh0.8mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

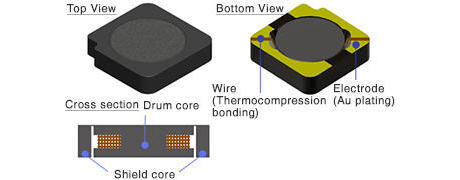

Structure


MIB4008M-W

Dimensions

【MIB4008M-W Series】

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Operating temperature range
Ta[°C] *4
MIB4008M-1R0W 1.0±30% 0.07 2.18 / 1.91 -40~+125
MIB4008M-2R2W 2.2±20% 0.13 1.48 / 1.28 -40~+125
MIB4008M-3R3W 3.3±20% 0.2 1.21 / 1.07 -40~+125
MIB4008M-4R7W 4.7±20% 0.3 0.97 / 0.90 -40~+125
MIB4008M-6R8W 6.8±20% 0.43 0.82 / 0.70 -40~+125
MIB4008M-100W 10.0±20% 0.57 0.69 / 0.63 -40~+125

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

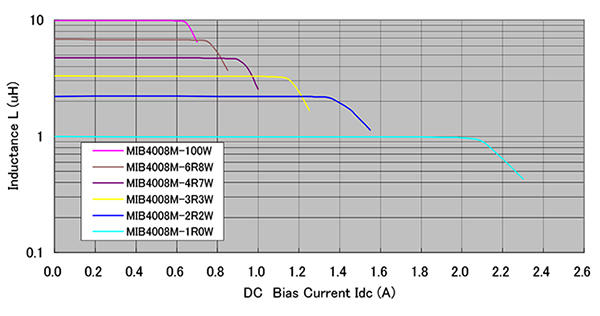

DC bias current characteristics
