MIB6040M-W Series

MIB6040M-W Series

Features


MIB6040M-W
  • Shielded,small foot print and low profile power inductors. 6.0mmX6.0mm(Typ)Xh4.0mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

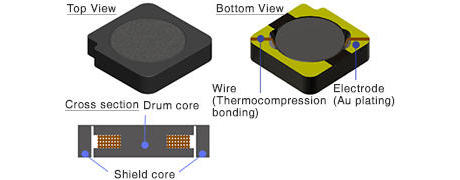

Structure


MIB6040M-W

Dimensions

【MIB6040M-W Series】

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Operating temperature range
Ta[°C] *4
MIB6040M-1R0W 1.0±30% 0.01 9.10 / 6.82 -40~+125
MIB6040M-2R2W 2.2±30% 0.015 6.32 / 5.35 -40~+125
MIB6040M-3R3W 3.3±30% 0.018 5.08 / 4.92 -40~+125
MIB6040M-4R7W 4.7±30% 0.022 4.43 / 4.58 -40~+125
MIB6040M-6R8W 6.8±30% 0.027 3.55 / 4.11 -40~+125
MIB6040M-100W 10.0±20% 0.034 3.17 / 3.56 -40~+125
MIB6040M-150W 15.0±20% 0.057 2.78 / 2.89 -40~+125
MIB6040M-220W 22.0±20% 0.093 1.94 / 2.09 -40~+125
MIB6040M-330W 33.0±20% 0.13 1.52 / 1.75 -40~+125
MIB6040M-470W 47.0±20% 0.16 1.40 / 1.62 -40~+125
MIB6040M-101W 100.0±20% 0.29 1.02 / 1.21 -40~+125

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

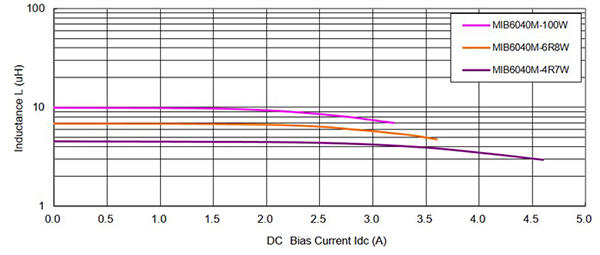

DC bias current characteristics
