MIB10020M-W Series

MIB10020M-W Series

Features


MIB10020M-W
  • Shielded,small foot print and low profile power inductors. 10.0mmX10.0mm(Typ)Xh2.0mm(Max)

  • Low noise and flux by closed magnetic path structure.

Applications


DC/DCconverters for Cellular phones, LCD Pannel and others.

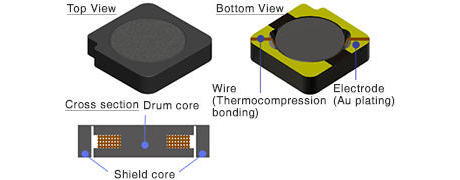

Structure


MIB10020M-W

Dimensions

【MIB10020M-W Series】

Recommended Land Pattern


Specifications


(Typical)
Part number Inductance
L [µH] *1
DC resistance
Rdc [Ω] *2
Rated current
Idc1 [A] *3
Operating temperature range
Ta[°C] *4
MIB10020M-3R0W 3.0±30% 0.027 4.51 / 4.20 -40~+125
MIB10020M-4R7W 4.7±30% 0.035 3.89 / 3.63 -40~+125
MIB10020M-6R8W 6.8±30% 0.052 3.15 / 3.02 -40~+125
MIB10020M-100W 10.0±20% 0.074 2.54 / 2.51 -40~+125
MIB10020M-150W 15.0±20% 0.099 2.12 / 2.13 -40~+125
MIB10020M-220W 22.0±20% 0.15 1.69 / 1.72 -40~+125
MIB10020M-470W 47.0±20% 0.3 1.19 / 1.18 -40~+125
MIB10020M-101W 100.0±20% 0.56 0.83 / 0.88 -40~+125

*1 Ta=25°C、Idc=0A

*2 Ta=25°C

*3 Idc1:Inductance change ratio |△L/L|≦30% Idc2:Temperature rise △T≦40°C

*4 Including self temperature rise

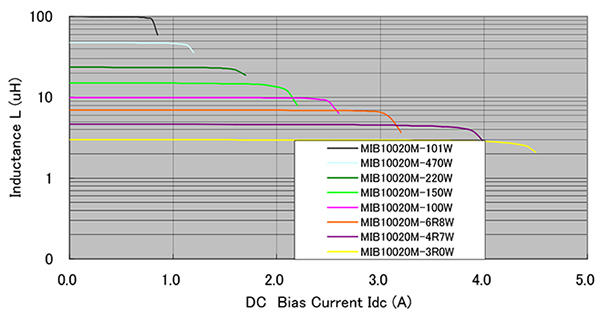

DC bias current characteristics
