Chip Type Three-Terminal Capacitors

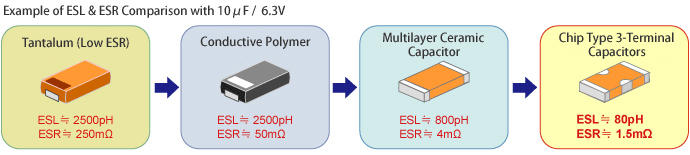

Because ESL (residual inductance) and ESR (equivalent series resistance) are extremely small, the self-resonance frequency is high. In comparison with normal two-terminal capacitors, deep insertion loss characteristic is provided to the high frequency area.
High capacitance 3-terminal capacitors can support protecting from low frequency ripple noise and high frequency noise (EMI) which normally requires the use several capacitors by one chip.
Used for digital circuits of digital appliances, computers, automotive electronics, etc.

Series

Name

Applications

Size, Capacitance

Noise reduction for signal line (computer, TV, digital camera, etc.)

Size: 10~41, Cap.: 22pF~22nF, WV: 50~100V, Current: 0.3~0.5A

Noise reduction for DC power line (computer, TV, digital equipments, etc.)

Size: 10~41, Cap.: 220pF~47μF, WV: 4~100V, Current: 1~6A

Noise reduction for DC power line (computer, TV, digital equipments, etc.)

Size: 10, Cap: 1μF, WV: 6.3V, Current: ~2A

Noise reduction for DC power line (computer, TV, digital equipments, etc.)

Size: 41, Cap: 180nF, WV: 50V, Current: ~6A

Noise reduction for signal line (Computer, TV, mobile phone, etc.)

Size: 30, Cap: 22pF~22nF, WV: 25~50V, Current: 0.3A
