DLM Series
Features
Inspite their compact size, DLM Seres EMI Filters have large allowable current. Therefore, they can be used on the large current DC lines, and can have large insertion loss characteristics in wide range with the π style circuit structure. Varistor combined type has excellent efficiency on absorption of switching surge and electrostatic surge. The gold-plated terminal ensures excellent solder heat resistance and solderability.
Applications
DC power line of laptop computer/ digital appliances/OA machineries, DC power line of industrial electronics/robots/FA machineries

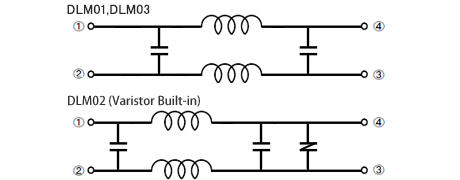

Equivalent circuit
Dimensions
-
-
Unit: ㎜ Type A B C D DLM01-01 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM01-02 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM01-03 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM02-01 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM02-02 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM03-01 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM03-02 7.8±0.3 4.8±0.3 0.8 2.9±0.2 DLM03-03 7.8±0.3 4.8±0.3 0.8 2.9±0.2
